Starlane X-Series Davinci-II - S Version
- Automatic lap timer with 1/100 second resolution
- Triple constellation 10Hz. GPS+GLONASS+GALILEO detection system with aeronautical algorithms
- Built-in track library with over 1000 tracks with intermediates
- Automatic finish line and intermediates positioning function without user intervention (SAFD-2)
- Inertial Pack feature with Lean Angle and Lateral and Longitudinal Accelerations indication
- Calculation of the achievable Ideal Time
- Calculation and visualization of 3 Intermediates
- Multilanguage menu (Italian, English, German, French, Spanish)
- Digital engine speed indicator
- GPS speed indication
- Engaged Gear Indicator
- Water Thermometer
- Thermocouple K 1000°c thermometer
- Settable alarms
- Max. engine speed readout = 32000; max. speed = 350 Km/h or 218 Mph
- Settable LED Bar and Shift Light
- Double hour meter for engine maintenance
- 1 Analog input for TPS signal
- 1 Wheel Speed input
- Expandable with optional WID wireless modules
- Data acquisiton lines: 1 Starlane Starlane CAN BUS + 1 CAN BUS for ECU + 1 K-Line + 1 RS232
- USB, Bluetooth 4.0 and WiFi Data download
- Memory of 999 laps that can be managed in 99 sessions
- Storage of max. RPM and speed values for every single lap
- Speed indication in Km/h or Mph
- Settable main screen
- TFT 5" Color 800x480 high brightness display with anti glare treatment
- Water resistant

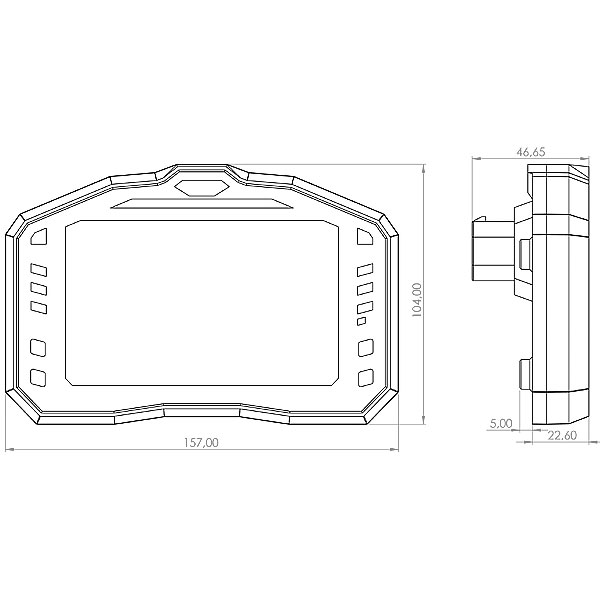

- Dimensions: width 157 mm - height 104 mm - depth 22.6 mm
- Supply: vehicle 12Volts battery
- Universal installation or with optional bike-dedicated pluk kits
- MAAT software available for download
- Intended use: Car - Motorbike

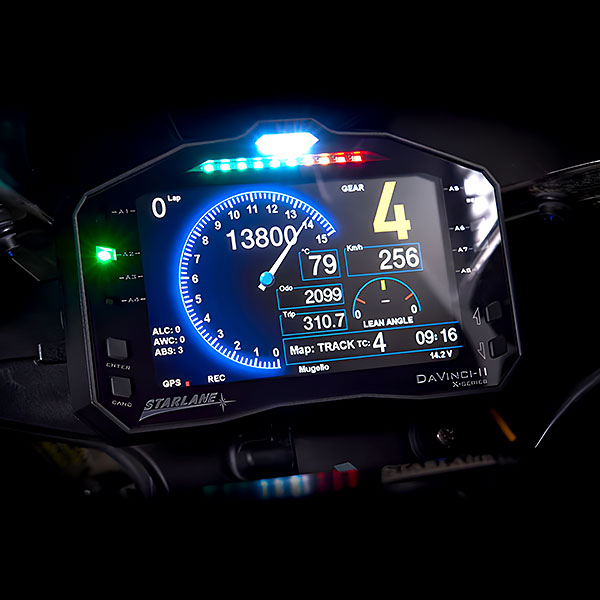

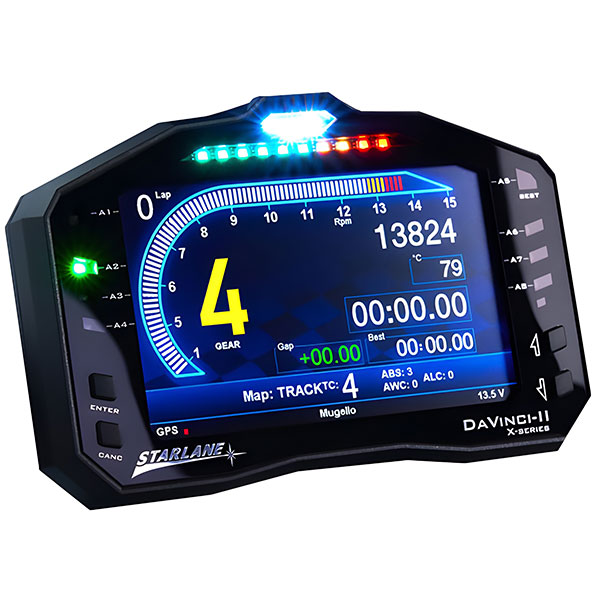

The Davinci-II S is an innovative dashboard packed with enhanced technology in a compact design, it features a fully customisable small 5" TFT colour display, that makes it easy to install and place on most bikes and is ready to go straight out of the box thanks to its built-in 1000 tracks.
Dedicated Plug Kits are available for the most popular motorcycle models. The Davinci-II can recognize the installed plug kit model and automatically manage the basic configuration for that bike. (such as RPM range etc) Like all Starlane chronometers, it is equipped with an internal GPS antenna. Unlike other brands, it, therefore, does not require any inconvenient external antenna to be placed on the vehicle with relative cables and risk of breakage.

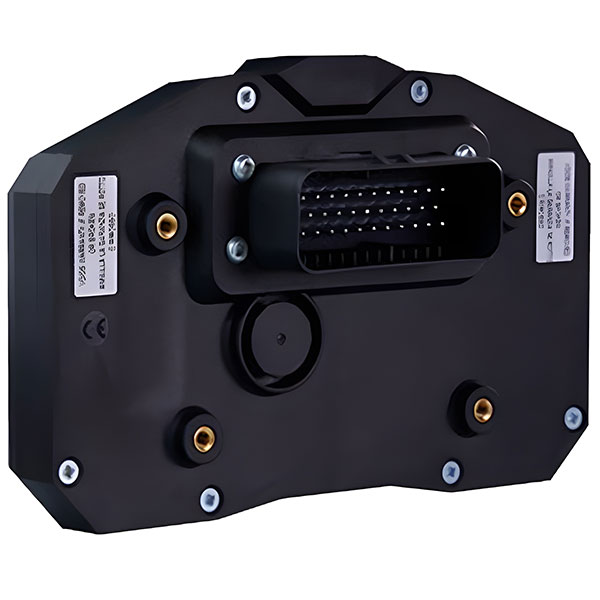

The connector on the back side allows the safe connection to the loom in absolute waterproofness (IP67 protection grade) and mechanical wires strength.
The Davinc-II S features full support of the optional wireless WID modules
Starlane X-Series Davinci-II - S Version
1) TRIPLE CONSTELLATION GPS+GLONASS+GALILEO RECEIVER AND ANTENNA BUILT IN THE INSTRUMENT:
the DAVINCI-II shock-proof Nylon-glass charged body accommodates the new double constellation receiver which use in symbiosis the american GPS and the russian GLONASS satellite systems. This solution increases dramatically the precision due to the vero high number of satellite involved in instantaneous position, speed, trajectory and lap time determination.
2) YOU CAN SAY GOOD-BYE TO ALL UNPRACTICAL INFRARED TRANSMITTERS ARRANGED ON THE PIT WALL:
the use of the GPS+GLONASS system intended to detect the lap time will make DAVINCI-II completely autonomous, requiring no beacon transmitters, such as the infrared ones used by old-generation systems.
Everything is getting much simpler. It is no longer necessary to arrange the transmitter and to recharge the battery, which is extremely annoying and unpractical, with the risk of forgetting it on the wall or having it stolen.
3) MANAGEMENT OF THE FINISH LINE AND 3 INTERMEDIATES:
thanks to the built-in library of over 1000 tracks, with intermediates, available in the Device or in MAAT software, or using the automatic feature, you can set up the coordinates of 4 lap trigger lines (main finish line + 3 optional intermediates). Whenever you cross a finish line or an intermediate, DAVINCI-II will indicate the relative split time and store its value. You can therefore quickly evaluate your own performance even if you are driving along a part of the track far from the main straight stretch, which would be expensive and unpractical if you used any other type of lap timer.
4) INDICATION OF THE ACHIEVABLE IDEAL TIME:
by managing intermediates, DAVINCI-II can calculate the time a driver can ideally achieve for every single session. This function is obtained by adding the best sectorial times. This will help you understand the lap time you might have achieved if there had been no traffic in a specific point of the track or if you had done a lap on top of your absolute performance.
5) DOUBLE FUNCTION "BEST LAP" LED:
the "BEST LAP" LED will turn on if you have improved your previous lap and it will blink if the lap you have just done is the best of the session. This solution will supply the driver with all the information necessary for performance without any distraction.
If you have set up intermediate finish lines, the LED is also enabled whenever you cross an intermediate. This means that this instrument is extremely useful to realise without any distraction whether you are improving compared to the same intermediate time of the previous lap or whether you have just accomplished the best intermediate time of the session.
6) GPS SPEED MEASUREMENT:
the advantage of using a GPS+GLONASS system is also that you can measure the vehicle speed with the highest degree of accuracy without having to install any sensor on the vehicle. No user setup is required and, above all, any measurement is always accurate, not altered by the inclination of the vehicle or tire deformation or spinning.
7) SETTABLE LED BAR AND SHIFT LIGHT:
DAVINCI-II is equipped with a bar with 10 high-brightness LEDs that can be totally set for both speed and color. Also the shift light can be set at the desired shift regime and with the desired color.
8) ENGAGED GEAR INDICATOR:
DAVINCI-II indicates the gear engaged by calculating the ratio between the engine revolutions and the wheel speed or the data coming from the ECU for the motorcycle models with this functionality.
9)SETTABLE ALARMS:
DAVINCI-II is equipped with predefined alarm LEDs that can also be configured in the color.
10) DOUBLE HOUR METER FOR THE PERFECT PERIODICAL MAINTENANCE OF THE VEHICLE:
DAVINCI-II has also got two hour meters that can be separately reset for the periodical maintenance of the vehicle. Hour meters are activated by the tacho signal and the GPS+GLONASS speed signal. This solution can operate the hour meters even if you do not wish to connect the tacho signal.
11) USB, BLUETOOTH 4.0 AND WIFI DATA DOWNLOAD:
In addition to the normal USB connection, DAVINCI-II is equipped with Bluetooth 4.0 and WiFi for setting parameters and targets and downloading data that can then be analyzed directly with the new MAAT software.
12) SUPPLIED WITH THE MAAT SOFTWARE:
MAAT software supplied with DAVINCI-II can file, analyze and print the data acquired and graphically represent the paths you have driven across with the relative acceleration and deceleration points for a lap-by-lap comparison.
13) 999-LAP MEMORY WITH AUTOMATIC MANAGEMENT OF 99 TEST SESSIONS:
DAVINCI-II will automatically create a new session whenever you access the track. This means that you can analyse the times you have stored during the various sessions even at the end of the day without having to delete memory whenever you access the track. You can store the Date and Time of every single session as well as the total time, the intermediates, the maximum speed and the max. engine revolutions for every single lap.
14) CYCLICAL MEMORY MANAGEMENT:
with DAVINCI-II you will never face memory full issues because,in order to allow a continuous usage, it manages the available space by erasing automatically the oldest sessions when the memory is almost full.
15) STORAGE OF THE FINISH LINE COORDINATES OF THE TRACKS MOST USED:
you can store the coordinates acquired for the finish line of the tracks you are training on most frequently. You can file up to 16 tracks and easily call the finish line of the current track without having to reset it every time.
16) COLOR HIGH BRIGHTNESS 5" TFT 800x480 DISPLAY WITH ANTI-GLARE PROTECTION:

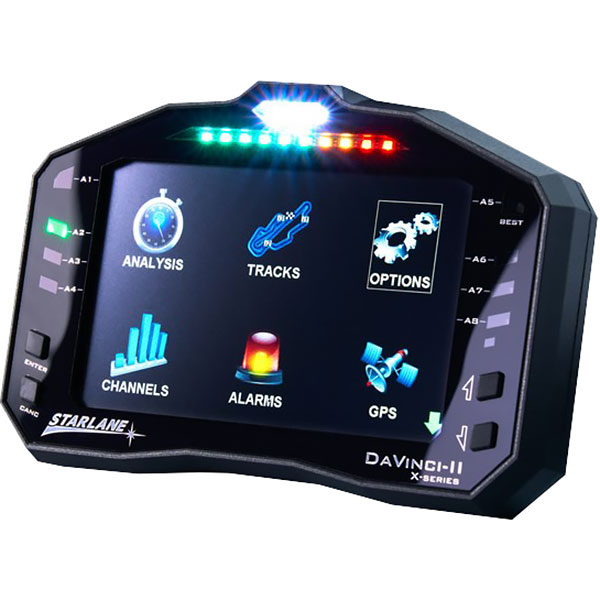

DAVINCI-II is equipped with a display that uses high-brightness TFT technology and a front panel with a special anti-reflection treatment that minimizes the annoying reflections typical of the original instruments. DAVINCI-II alos comes with a icon-based user interface that allows to analyse all stored data and set up all wished functions in an unmatched user-friendly and immediate manner.
17) WATER-RESISTANT:
DAVINCI-II is water resistant.
