RAM Mounts Brake / Clutch Reservoir U-Bolt Mount with Standard Arm for TomTom Rider 2
Handlebar mounted, modular GPS mounting system for TomTom GPS systems
Details
Select an option
Get a price match
RAM Mounts Brake / Clutch Reservoir U-Bolt Mount with Standard Arm for TomTom Rider 2
- Marine grade aluminium construction
- Mounting hardware included
- 4-Hole AMPS: 1.181" x 1.496"
- Attaches to factory cradle

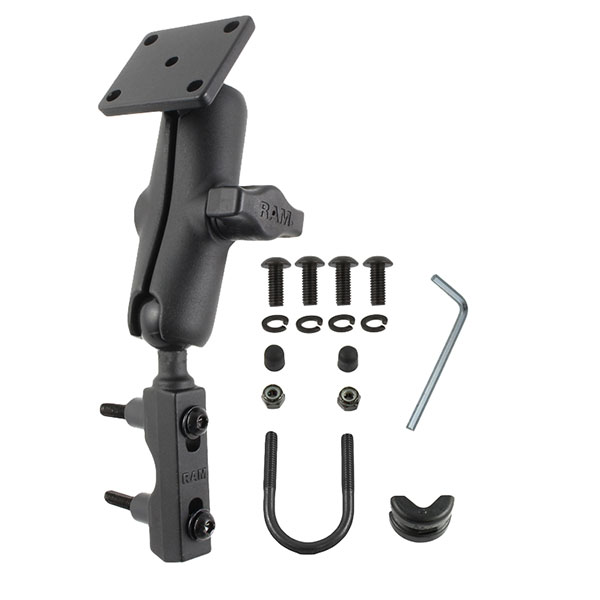

This kit consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, standard double socket arm and custom TomTom base adapter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The custom TomTom adapter base connects to the back of the factory cradle that is included with the purchase of the TomTom Rider 2/Urban Rider. The screws that are included with the RAM-B-174-A-TOM1U match up with the threads on the back of the RIDER 2/Urban Rider. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Contents
4x M5 x 12mm Machine Screws
4x M5 Stainless Steel Lock Washers
1x M3 Hex Key Wrench
2x M6 x 55mm Hex Bolts
2x #1/4-20 x 2" Hex Bolts
2x 1/2" Spacers
2x 1/4" Split Lock Washers
1x 1/4"-20 U-Bolt for .5" - 1" Rails
1x 1/4"-20 U-Bolt for 1" - 1.25" Rails
2x 1/4"-20 Nyloc Nuts
2x Rubber Caps
1x U-Bolt Spacer
