Starlane DaVinci-II R
Professional digital GPS dasboard with wireless expansion, colour display and data acquisition
Details
RRP
£1,514.99
Select an option
Online
In-store
Seen it cheaper?
Get a price match
Get a price match
FREE delivery & returns
Quick find: 396104
Description
Related Items
Manufacturer
Starlane DaVinci-II R
- Automatic lap timer with 1/100 second resolution
- Double constellation 10Hz. GPS+GLONASS detection system with aeronautical algorithms
- Built-in track library with hundreds of race circuits
- Automatic finish line and intermediates positioning function without user intervention (SAFD-2)
- Inertial Pack feature with lean angle, lateral and longitudinal accelerations indication
- Calculation of the achievable ideal time
- Calculation and visualization of 3 Intermediates
- Multilanguage menu (Italian, English, German, French, Spanish)
- Digital engine speed indicator
- GPS speed indication
- Engaged gear indicator
- Water thermometer
- Thermocouple K 1000°c thermometer
- Settable alarms
- Max engine speed readout: 32000rpm
- Max speed readout: 350kph / 218mph
- Settable LED bar and shift light
- Double hour meter for engine maintenance
- Four supplementary analog channels at high frequency (500Hz)
- Two wheel speed inputs
- Expandable with optional WID wireless modules
- Data acquisition lines: 1 Starlane Starlane CAN BUS + 1 CAN BUS for ECU + 1 K-Line + 1 RS232
- USB, Bluetooth 4.0 and WiFi data download
- Memory of 999 laps that can be managed in 99 sessions
- Storage of max RPM and speed values for every lap
- Settable main screen

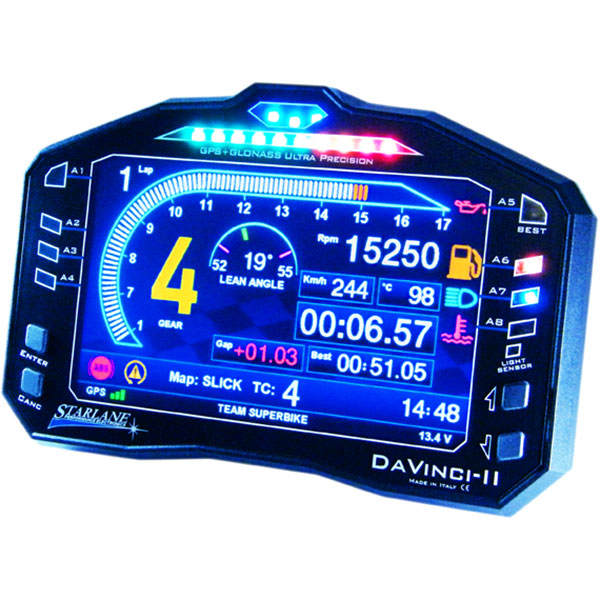

- TFT 5" Colour 800x480 high brightness display with anti glare treatment
- Water resistant
- Dimensions: width 157mm, height 104mm, depth 22.6mm
- Requires bike specific or universal plug kit wiring (Not included)
- Vehicle 12Volts battery power required
- MAAT software available for download
- Includes universal bracket with silent blocks
The Starlane DaVinci-II S revolutionizes the concept a of digital dashboard and defines a new technological step due to the full support of the exclusive wireless WID modules. The most compact and slim dashboard on the market with a 5 "TFT colour display. This makes it easy to install on newer bikes which have increasingly tapered windscreens and smaller spaces. It includes an internal GPS antenna, built-in library of hundreds of tracks, with the device automatically recognising the current one and S.E.P.L.A. (Starlane Enhanced Precision Laptiming Algorithm) function; a lap timing algorithm allowing very high lap timing precision.
The DaVinci-II S also comes with the new Inertial Pack. This pack performs the calculation and indication of lean angle, lateral acceleration and longitudinal acceleration in G. The analysis software also shows the acceleration and lean angle charts. The system can automatically recognize the installed plug-kit model and automatically manage the basic configuration for that particular bike if supported.
The DaVinci-II also supports optional WID (Wireless Input Device) wireless sensors and modules technology, which give the possibility to expand the system simply with additional sensors connected to the WID module.
The DaVinci-II S also comes with the new Inertial Pack. This pack performs the calculation and indication of lean angle, lateral acceleration and longitudinal acceleration in G. The analysis software also shows the acceleration and lean angle charts. The system can automatically recognize the installed plug-kit model and automatically manage the basic configuration for that particular bike if supported.
The DaVinci-II also supports optional WID (Wireless Input Device) wireless sensors and modules technology, which give the possibility to expand the system simply with additional sensors connected to the WID module.
