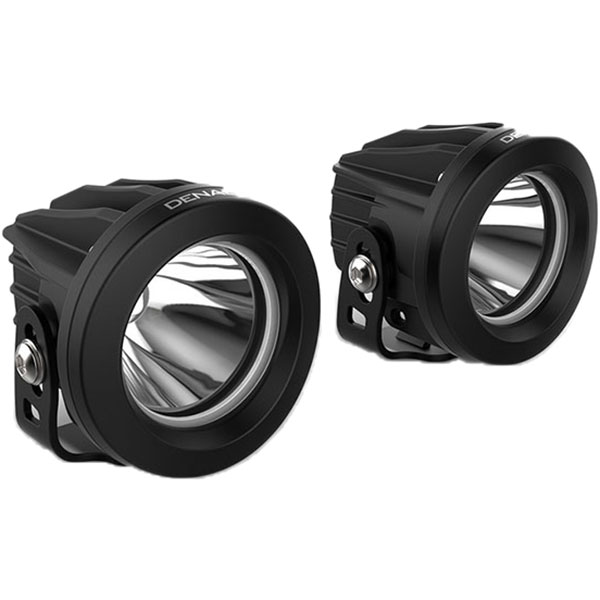

Denali 2.0 DR1 TriOptic LED Light Kit

Denali 2.0 DR1 TriOptic LED Light Kit

• LEDs: (2X) 10 Watt Cree XPL HI
• Power draw: 1.6 amps
• Beam distance: (Spot) 1000 Feet
• Beam width: (Spot) 75 Feet
• Raw lumens: 2190
• Intensity: Single intensity harness
• Operating voltage: 12 VDC
• DataDim compatible: Yes
• Pod size: 3.7" round x 3.8" deep

Denali 2.0 DR1 TriOptic LED Light Kit

Hi Drive High-Intensity 10 Watt LEDs
2.0 lights feature the latest development from Cree; a new "Hi-Intensity" LED chip that features a redesigned primary optic to maximize light output through secondary optics. The "HI" series LEDs are more efficient; producing more lumens and 15% more light output without increasing power draw.

TriOptic Multi-Beam Lens System
2.0 light kits include two spot lenses and two elliptical flood lenses giving you three unique beam patterns in one kit. Use two spots for maximum distance, two elliptical floods for maximum spread, or one of each for the best of both worlds.

DataDim LED Dimming Technology
All 2.0 light pods are equipped with a dedicated 3rd-wire dimming circuit so we can use an external signal to reliably control the intensity of the LED chip at the source. Plug in the DataDim Controller (sold separately) to enable the Denali lights to switch between half and full intensity with your vehicle's original high beam switch. Data-Dimming eliminates unnecessary modulation of the entire circuit which is unavoidable using basic two-wire dimming.

HotSwap Modular Wiring Harness System
Denali's premium wiring harness features high-quality waterproof components and their clever HotSwap design that enables an effortless swap from the standard single-intensity relay to the dual-intensity DataDim controller (sold separately).

DrySeal Submersible Waterproof Illuminated Switch
Denali's beefy, completely sealed, waterproof switch was engineered from the ground up to withstand harsh out-door abuse on powersports vehicles. It's clever design can be either flush or bar mounted.

DrySeal Submersible Waterproof Light Housings
In addition to moulded silicone gasket seals, Denali use a unique DrySeal construction technique that encases the wires in a potted cavity as they enter the housing. This ensures the housings are 100% watertight even when submerged underwater with the wires cut and connector removed.

Impact PC Corrosion-Proof Bezels
Denali's impact PC bezels are moulded in 100% polycarbonate to create an impenetrable surface that woun't rust, fade, or corrode even after taking repeated impact from rocks and debris.

LiveActive Intelligent Thermal Management
Denali 2.0 lights feature cutting edge LED drivers that work with their uncompromising heatsinks to manage heat levels in real time. This duo works together to ensure that Denali lights stay cool enough to maintain the maximum light output when you need it most.

Chrome plated Optic Holders
Denali take the extra step to chrome plate their holders to maximize reflectivity and refine the appearance to match the original chrome reflectors of your vehicles headlights.

Low-Profile Mount with Stainless Steel Hardware
Denali 2.0 light pods include a robust, low-profile hinge mount and stainless steel M8 mounting hardware. The low-profile hinge creates a super clean installation while maintaining maximum strength.

Handlebar Switch Mount Included
Denali's versatile switch design can be either flush, perch, or bar mounted to your vehicle. Denali 2.0 light kits include a 7/8" and a 1" handlebar mount to provide an integrated mounting location for the light switch right out of the box.

E Mark Approved Lenses
Denali 2.0 kits include E Mark approved lenses.

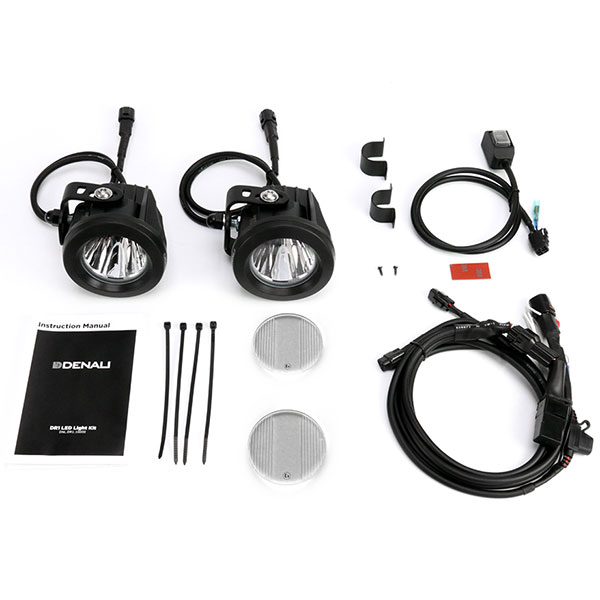

DR1 Kit Contents
(2X) LED light pods
(2X) Spot lenses (Installed)
(2X) E Mark approved True-Hybrid lenses
(1X) HotSwap single intensity wiring harness
(1X) Dryseal waterproof illuminated switch
(1X) 7/8" handlebar switch mount
(1X) 1" handlebar switch mount
(2X) Hinge mounts with M8 stainless steel hardware
(4X) Zip ties & 1x adhesive mounting square
