If this is connected direct to the battery does this device detect when the battery is charging and then supply power or will it simply provide power unless the third wire is connected to a trigger wire?

Oxford Products have confirmed that you will need to attach the trigger wire to a switched live feed for the fused junction box to work.

If a cable positive live direct to the battery while removing the GPS when not running. Will the LEDs flatten my battery or should it be ok wired direct? Thanks

This product makes it very easy for you to connect up to 4 electronic devices (4 x 5Amp) to your motorcycle without the need to search for a suitable switched live feed each time or attaching multiple ring leads to your battery. Connect directly to the battery, and one trigger wire connects to any live ignition feed. The benefit of taking power directly from the battery is that the vehicle's original wiring is not affected or overloaded. CANBUS systems monitor all wiring and this hub prevents any issues. Each connection port is live when the ignition of the motorcycle is switched on, meaning that you will never suffer a flat battery. Each port is protected with a 5 Amp replaceable fuse and if the device uses less power an alternative 3 Amp and 2 Amp fuse is provided. In normal operation, a blue LED light on each output port shows that the power is passing through normally. If a fuse has blown, the LED will light up red as a warning.

Can I go higher than the 5 amp fuse?

Unfortunately not, the max is 5amp.

The unit with its connections does not look waterproof, am I correct?

Oxford are not listing this product being waterproof.

Please can you give me the physical dimensions of the junction box ( length, width, depth ) in mm.

We can confirm that this junction box measures 95 x 45 x 25 mm.

Oxford Junction Box - 12V with fused power outlets

Easy to store quick connect junction box compatible with up to four electronic devices

Details

RRP

£24.99

Select an option

Online

Loading…

In-store

Loading…

Seen it cheaper?
Get a price match

Delivery & returns

Quick find: 2429840

Description
Manufacturer

Description

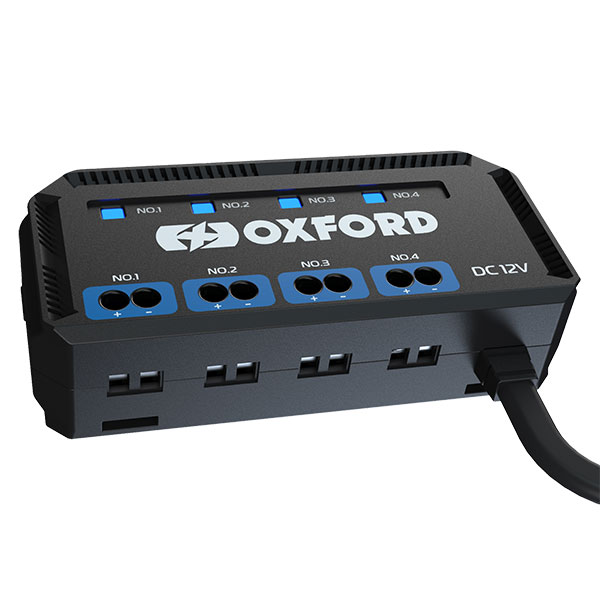

Oxford Junction Box - 12V with fused power outlets

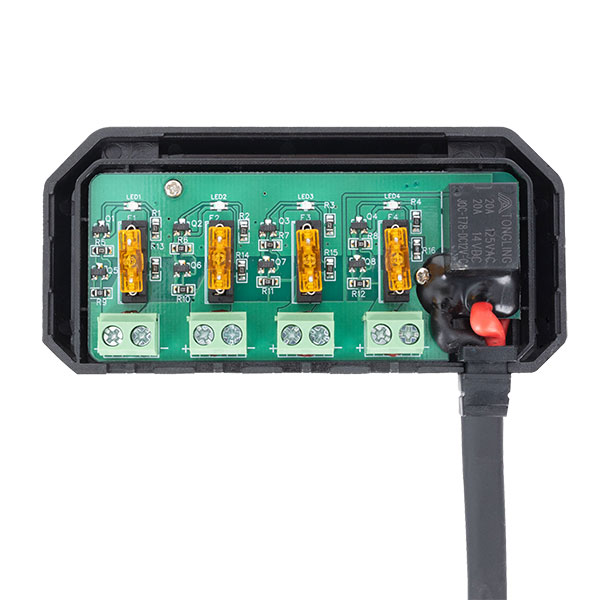

12V fused power junction box with relay
LED power status
Ignition shut off
x4 5Amp connection ports
Compact design
Can be used with Auxiliary Lights, HotGrips® and much more

Quickly connect four electronic devices to your motorcycle without having to search for a suitable switched live feed each time. There's no need to attach multiple ring leads to your battery as this device manages them for you.

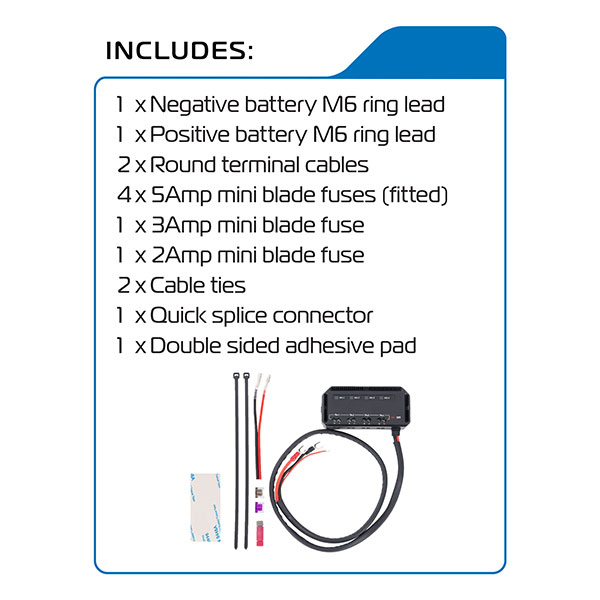

Includes:
x1 Negative battery M6 ring lead
x1 Positive battery M6 ring lead
x2 Round terminal cables
x4 5Amp mini blade fuses (fitted)
x1 3Amp mini blade fuse
x1 2Amp mini blade fuse
x2 Cable ties
x1 Quick splice connector
x1 Double sided adhesive pad

Manufacturer

Questions and Answers

If this is connected direct to the battery does this device detect when the battery is charging and then supply power or will it simply provide power unless the third wire is connected to a trigger wire?
January 2, 2025
Oxford Products have confirmed that you will need to attach the trigger wire to a switched live feed for the fused junction box to work.
If a cable positive live direct to the battery while removing the GPS when not running. Will the LEDs flatten my battery or should it be ok wired direct? Thanks
December 23, 2024
This product makes it very easy for you to connect up to 4 electronic devices (4 x 5Amp) to your motorcycle without the need to search for a suitable switched live feed each time or attaching multiple ring leads to your battery. Connect directly to the battery, and one trigger wire connects to any live ignition feed. The benefit of taking power directly from the battery is that the vehicle's original wiring is not affected or overloaded. CANBUS systems monitor all wiring and this hub prevents any issues. Each connection port is live when the ignition of the motorcycle is switched on, meaning that you will never suffer a flat battery. Each port is protected with a 5 Amp replaceable fuse and if the device uses less power an alternative 3 Amp and 2 Amp fuse is provided. In normal operation, a blue LED light on each output port shows that the power is passing through normally. If a fuse has blown, the LED will light up red as a warning.
Can I go higher than the 5 amp fuse?
December 11, 2024
Unfortunately not, the max is 5amp.
The unit with its connections does not look waterproof, am I correct?
December 4, 2024
Oxford are not listing this product being waterproof.
Please can you give me the physical dimensions of the junction box ( length, width, depth ) in mm.
December 2, 2024
We can confirm that this junction box measures 95 x 45 x 25 mm.
