CTEK MXS 5.0 Automatic Charger & Maintainer

Name: CTEK MXS 5.0 Automatic Charger & Maintainer
Brand: CTEK
SKU: 2404223
Price: 84.99 GBP
Availability: InStock

Advanced microprocessor controlled, lead acid battery charger with reconditioning mode

Details




RRP

£84.99

Select an option

Online

Loading…

In-store

Loading…

Seen it cheaper?
Get a price match

FREE delivery & returns

Quick find: 2404223

Description
Mounting Bracket
Manufacturer

Description

CTEK MXS 5.0 Automatic Charger & Maintainer

Charges batteries up to 110Ah
Easy to read LED display
Splash and dustproof (IP65)
Safe spark free operation
Reverse polarity protected
Short circuit proof
Fully automatic 'connect and forget' 8 step 12V charging
Smaller battery, normal battery, AGM and Recond programs
Built-in automatic temperature compensation
Patented float/pulse maintenance for batteries up to 160Ah
5-year warranty

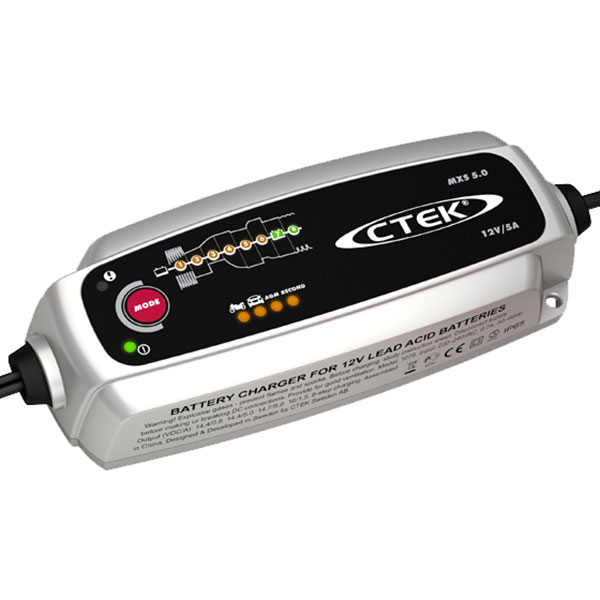

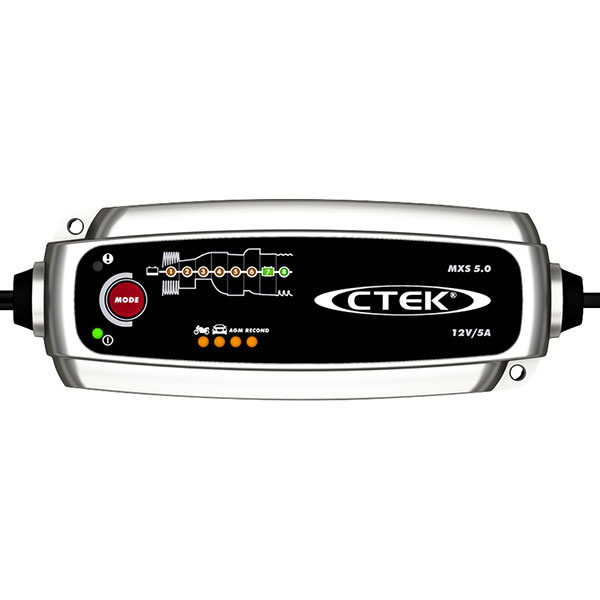

The MXS 5.0 is an advanced microprocessor controlled battery charger which gives unrivalled performance for lead acid batteries from 1.2-110Ah. It comes with automatic temperature compensation built in, which ensures the best charging performance, even in the most extreme conditions. The MXS 5.0 also includes battery diagnosis to establish whether your battery can receive and retain a charge, patented automatic desulphation program, an AGM option which maximises the performance life of most Stop/Start batteries and a special Recond mode for reconditioning deeply discharged batteries. The MXS 5.0 uses CTEK's patented float/pulse system, which is the most efficient maintenance mode when a battery is connected for long periods.

Technical Data

Charging category: AC charging

Input: 220-240 VAC, 50-60 Hz, 0.6 A

Output: 14.4/14.7/15.8 V, 5.0 A

Battery chemistry: Lead acid

Battery types: 12 V; WET; MF; Ca/Ca; AGM; EFB; GEL

Battery capacity: 1.2-160 Ah

Back current drain*: Corresponding to less than 1 Ah/month

Battery voltage: 12 V

Ambient operating temperature: -20 ˚C to +50 ˚C

Start voltage: 2.0 V

Ripple**: Less than 4 %

Degree of protection: IP65

*Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers have a very low back current.
**The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery, which has an ageing effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.
