Starlane Corsaro GPS laptimer - Pro Version

Starlane Corsaro GPS laptimer - Pro Version

• Digital engine speed indicator
• Engaged Gear Indicator
• Thermocouple K 1000c thermometer
• Settable water and thermocouple temperature alarm
• Max engine speed readout 32,000rpm
• Max speed 350 Km/h or 218 Mph
• Settable shift light
• Settable number of pulses per RPM readout
• Storage of max. RPM and speed values for every single lap

Starlane Corsaro GPS laptimer - Pro Version

No impractical infra-red transmitters arranged on the pit wall The use of the GPS and GLONASS system intended to detect the lap time makes Corsaro completely autonomous, requiring no beacon transmitters, such as the infrared ones used by old-generation systems. Everything is getting much simpler. It is no longer necessary to arrange the transmitter and to recharge the battery, which is extremely annoying and impractical, with the risk of forgetting it on the wall or having it stolen

Management of the finish line and 3 intermediates By means of the track library, available in the Device or in DigiRaceMNX software, you can set up the coordinates of 4 lap trigger lines (main finish line + 3 optional intermediates). Whenever you cross a finish line or an intermediate, Corsaro will indicate the relative split time and store its value. You can therefore quickly evaluate your own performance even if you are driving along a part of the track far from the main straight stretch, which would be expensive and impractical if you used any other type of laptimer.

Indication of the achievable ideal time By managing intermediates, Corsaro can calculate the time a rider can ideally achieve for every single session. This function is obtained by adding the best sectoral times. This will help you understand the lap time you might have achieved if there had been no traffic in a specific point of the track or if you had done a lap on top of your absolute performance.

Double function 'Best lap' LED The "Best lap" LED will turn on if you have improved your previous lap and it will blink if the lap you have just done is the best of the session. This solution will supply the driver with all the information necessary for performance without any distraction. If you have set up intermediate finish lines, the LED is also enabled whenever you cross an intermediate. This means that this instrument is extremely useful to realise without any distraction whether you are improving compared to the same intermediate time of the previous lap or whether you have just accomplished the best intermediate time of the session.

GPS speed measurement The advantage of using a GPS and GLONASS system is also that you can measure the vehicle speed with the highest degree of accuracy without having to install any sensor on the vehicle. No user setup is required and, above all, any measurement is always accurate, not altered by the inclination of the vehicle or tire deformation or spinning.

Engine speed indicator* with settable shift light Corsaro is not only a chronometer and tachometer, but also an engine speed indicator, you can also display the speed. The engine speed can be measured by arranging the inductive cable in the proximity of an ignition coil or by connecting the signal wire to the original speed indicator.

Engaged gear indicator* and water temperature with settable alarm Can indicate the engaged gear by calculating the ratio between the engine revolutions and the wheel speed. It can also indicate the water temperature by means of an optional temperature sensor.

Input for exhaust or oil temperature* with settable alarm Corsaro comes with a specific input for the optional Thermocouple type K to acquire the exhaust temperature, needed for the correct carburation on 2 stroke engines, or oil temperature for 4 stroke engines.

Double hour meter for the perfect periodical maintenance of the vehicle Corsaro has also got two hour meters that can be separately reset for the periodical maintenance of the vehicle. MPH meters are activated by the tacho signal and the GPS and GLONASS speed signal. This solution can operate the MPH meters even if you do not wish to connect the tacho signal.

Bluetooth 4.0 data download Corsaro is compatible with Bluetooth 4.0 features to set parameters and lap triggers and to download the acquired data that will be then analyzed directly into the software Digirace-MMX.

* See optional WID and RID modules to activate this feature.

Supplied with the digiracemmx software the DigiRace-MMX software supplied with Corsaro can file, analyse and print the data acquired and graphically represent the paths you have driven across with the relative acceleration and deceleration points for a lap-by-lap comparison.

999-lap memory with automatic management of 99 test sessions Corsaro will automatically create a new session whenever you access the track. This means that you can analyse the times you have stored during the various sessions even at the end of the day without having to delete memory whenever you access the track. You can store the Date and Time of every single session as well as the total time, the intermediates, the maximum speed and the max. engine revolutions for every single lap.

Cyclical memory management with Corsaro, you will never face memory full issues because in order to allow a continuous usage, it manages the available space by erasing automatically the oldest sessions when the memory is almost full.

Storage of the finish line coordinates of the tracks most used you can store the coordinates acquired for the finish line of the tracks you are training on most frequently. You can file up to 16 tracks and easily call the finish line of the current track without having to reset it every time.

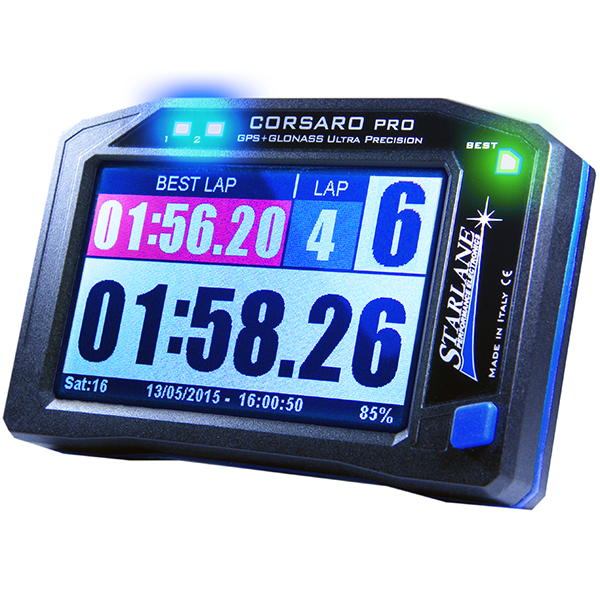

Corsaro pro comes with a display using transflective technology, rare and unique peculiarity for color display, allowing full readability even under direct sunlight when backlight is off. The sharp resistive touch screen allows easy access the device features also if wearing gloves. This solution has provided for the development of a icon-based user interface that allows to analyse all stored data and set up all wished functions in an unmatched user-friendly and immediate manner.

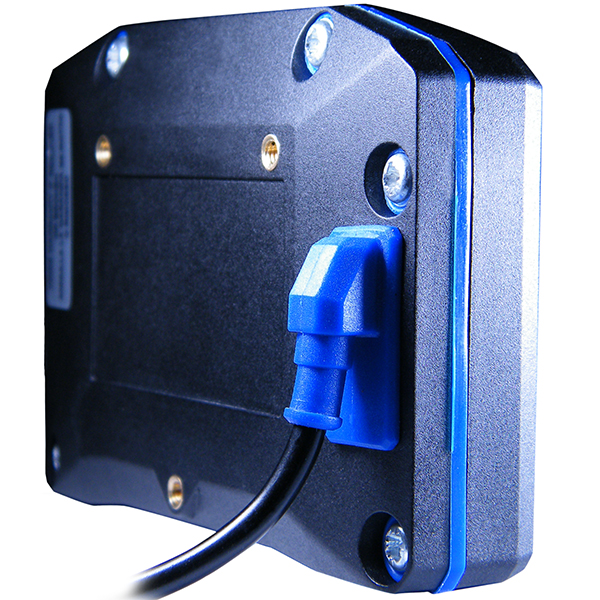

Built in battery and external supply equipped with internal high capacity Lithium battery can also be supplied by 12V vehicle battery. Moreover, Corsaro is complete with powerful energy saving and self power-off functions the user can set up to make the best use of battery performance. It is supplied with a specific extension with rings for battery connection and with a connector on one side of the instrument for rapid disconnection.

Water-resistant Corsaro is water resistant and it can also be used in case of rain.
