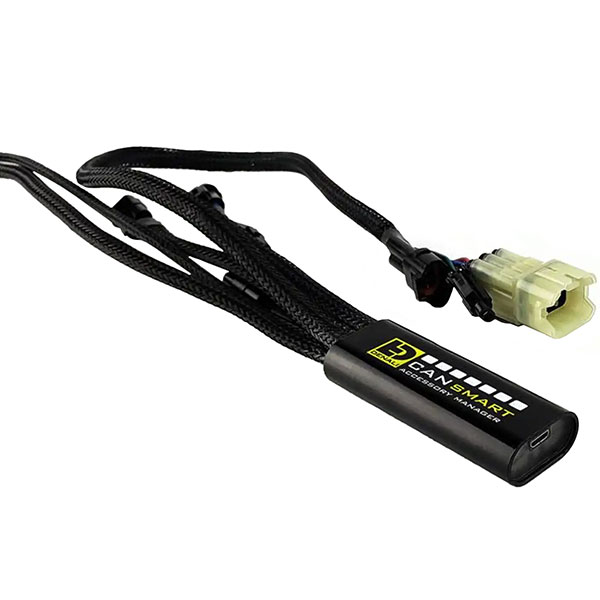

Denali 2.0 Plug-n-Play CANsmart For KTM Models

Denali 2.0 Plug-n-Play CANsmart For KTM Models

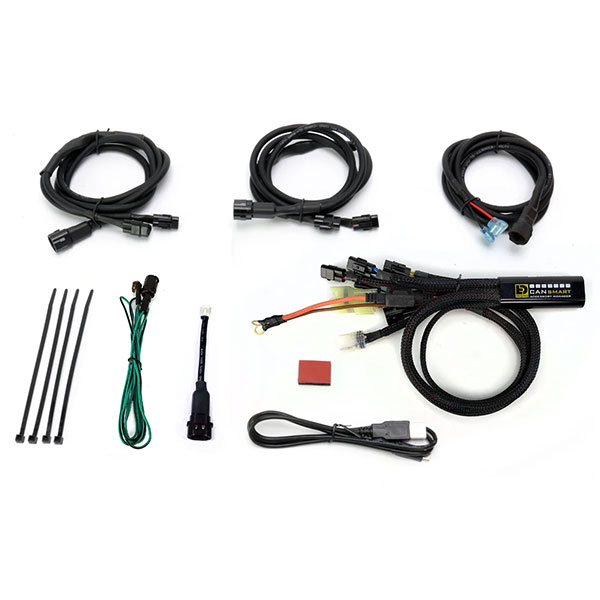

• True Plug & Play installation
• New firmware allows full dimming control of two-wire circuits
• Offers custom control of your electrical accessories
• Four dedicated pre-programmed circuits
• Each circuit is electronically fused and preconfigured to use right out of the box
• Features dozens of customizable settings that can be controlled with CANsmart Accessory Manager Software
• Flash to pass and strobe when horn active
• Can strobe your auxiliary lights when you pulse the high beam or sound your horn
• Compatible with the Denali B6 Auxiliary brake light
• Permits use of auxiliary horn like the Denali SoundBomb without having to add a relay or dedicated horn wiring harness

Denali 2.0 Plug-n-Play CANsmart For KTM Models

KTM Dongle Functionality*
Enables additional features in the ABS control unit and the ECU and remembers settings removing the need to reset the ABS and MTC every time you restart the bike. Additionally enables the 80 octane "Bad Fuel" function, which reduces engine power for trips with lower fuel quality.

High/Low Sync

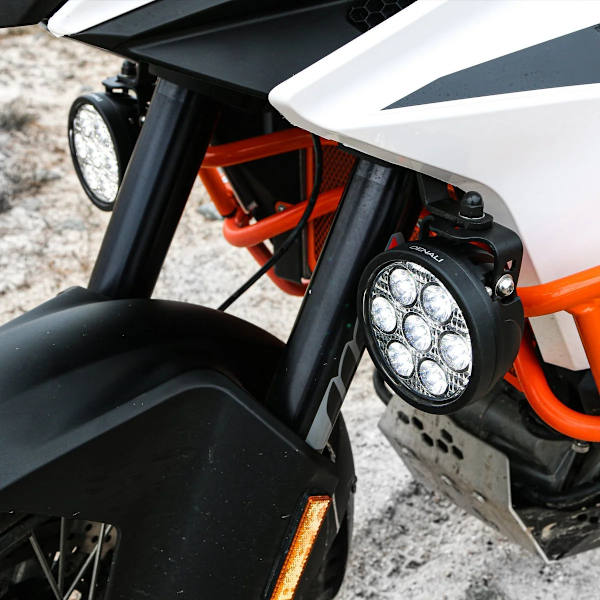

Set passing lamps and auxiliary lights to switch between a programmable high/low setting with the factory high beam switch.

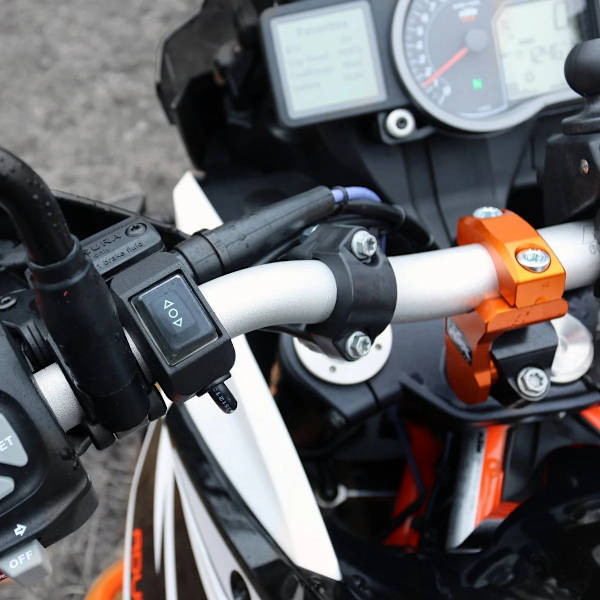

ON/OFF and Dim
Independently control two sets of lights ON/OFF and change intensity level from your original vehicle switches.

Modulate Lights
Set auxiliary lights to modulate for increased visibility to other motorists.

Flash to Pass
Need to get someone's attention? Pulse your high beam switch three times and your auxiliary lights will strobe three times fast.

Cancel With Indicators*
This feature cancels the corresponding auxiliary light when you turn your indicators on preventing powerful auxiliary lights from overpowering your signal.

Inverse Flashing With Hazards*
This features flashes your auxiliary lights inversely to your hazard lights, increasing visibility during road side emergency's.

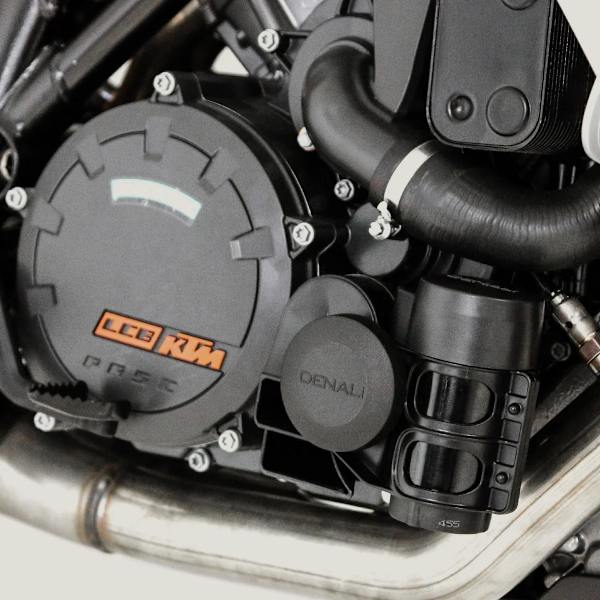

Plug & Play Horn Installation
Quickly and easily connect high power aftermarket horns like our SoundBomb™ without having to add an additional harness or relay.

Strobe with Horn*
With this feature selected the CANsmart™ software will automatically strobe your passing lamps or auxiliary lights when you sound your horn. This feature works whether you have the factory horn or SoundBomb™ horn installed.

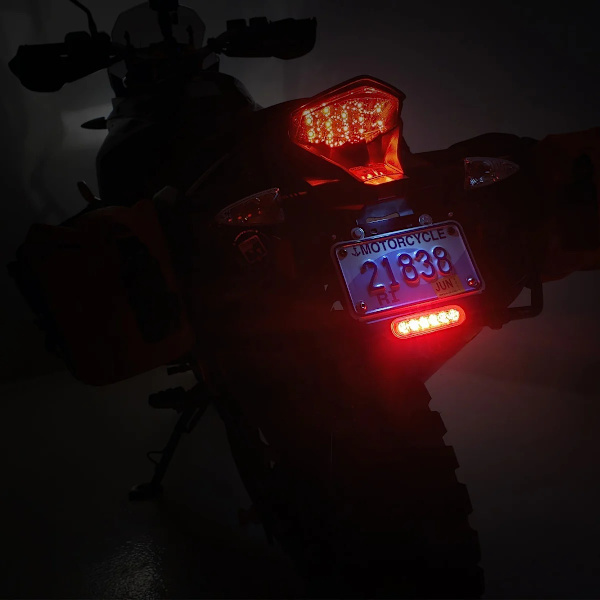

Deceleration Activated "Smart Brake" Technology*
The CANsmart™ reads vehicle speed in real time to activate your auxiliary brake light during deceleration before you even touch the brake. You can adjust the sensitivity and minimum speed at which the Smart Brake Feature will activate.

Flash Pattern Braking*
The CANsmart™ provides four different flash patterns that make our super bright auxiliary brake lights even noticeable to motorists behind you. You can set auxiliary brake lights to only flash under hard braking, flash continuously as your brake is applied or flash four times rapidly then hold steady (California legal flash rate).

Circuit Function Selector
The Circuit Function Selector in the CANsmart software will let you run any accessory of your choice on any of the four circuits. Click on a circuit icon to open the drop down menu and make your selection from the list of available circuit functions.

Switched Power Source
The CANsmart™ provides a universal "accessory" option which simply gives you clean switched 12V power. That means whatever accessory you connect to this circuit will turn on and off with your ignition.

Delay Time Out
You can also set the accessories on this circuit to have a delayed time out. This will keep them powered for up to 30 seconds after your turn off your bike.

On Board Power
The "accessory" circuit option is ideal for powering your GPS, phone, heated gear or any other electronic device.

*NOTE:
1. The KTM 790 series motorcycles use a different ECU and are only partially supported. The indicators, Heated gear, horn & KTM dongle functions are not available for 790 models, but controlling auxiliary lighting, brake lights and other accessories is supported. Brake light features are only triggered by the front brake for 790 models.

2. The 80 octane "Bad Fuel" feature is only available for Adventure models up to model year 2016. The OEM "OFFROAD PACK" (Part No. 60600980000) is additionally required for the 1050/1090 ADVENTURE to be able to use the dongle features.

3. It is recommended adding a B6 wiring extension QF 775370 if you are planning to install a B6 on the KTM 790
