Denali CANsmart™ Controller Gen II - Husqvarna Norden 901

Harness the flexibility and intelligence of your Norden's CANbus electrical system to make installation of accessories drastically easier with the new and improved Denali CANsmart™ controller Gen II.

The Denali CANsmart™ controller provides plug-n-play installation and integrated control of up to four accessories to enable dozens of customisable settings that can be controlled right from your Norden's switch cluster or the CANsmart™ accessory manager software.

Unlike the Gen I CANsmart, all four circuits of the Gen II can provide a full 10 amps of continuous power and each circuit can be configured to run any accessory type. The maximum power draw for the whole unit remains at 30 amps continuous. The Gen II also features a new auxiliary light setting where you modulate your auxiliary lights for added conspicuity.

Instruction Manual

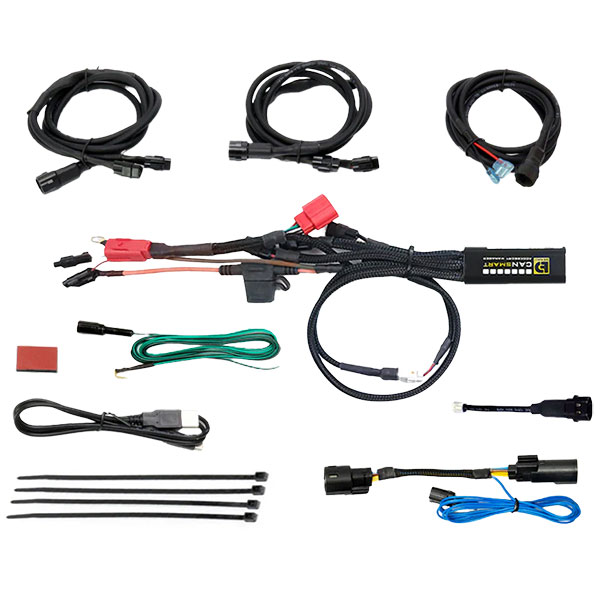

What's in the box

CANsmart™ Controller
x2 5.5ft Light Extension Cables
5ft SoundBomb Horn Extension Cable
B6 Brake Light Wiring Adapter
Horn Trigger Wire Harness
High Beam Trigger Wire Harness
Zip-ties
Adhesive Hook-and-Loop Fastener
Micro USB Programming Cable

Software Download

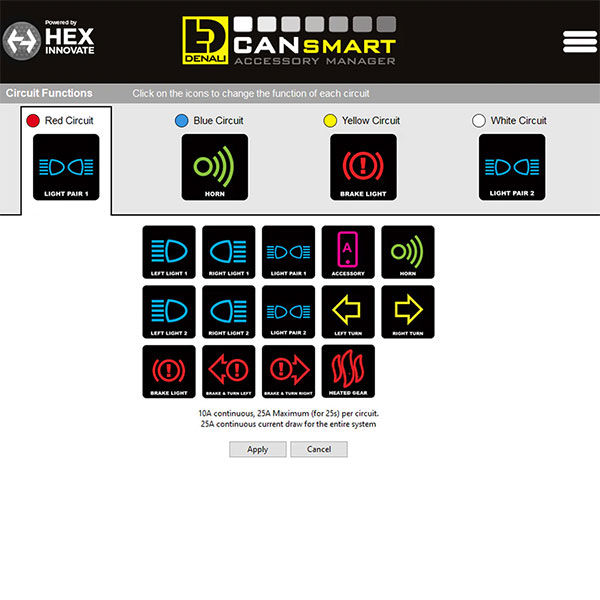

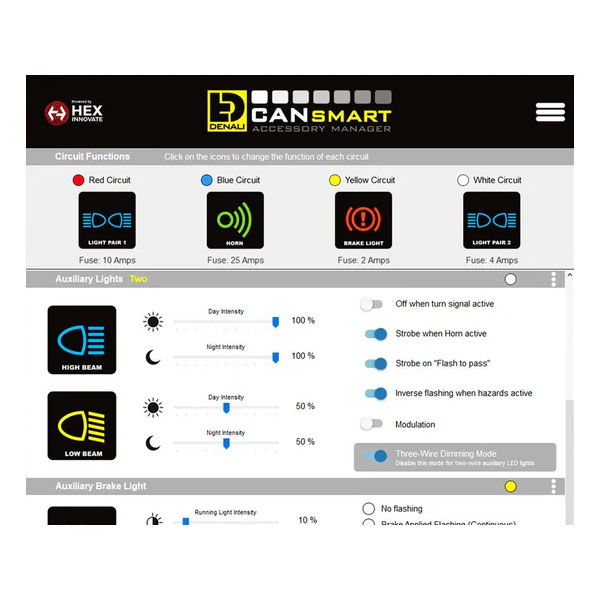

Click HERE to download Windows or Mac CANsmart Accessory Manager Software

Norden 901 and 901 Explorer Limitations
Due to variances with the Norden 901's factory wiring harness, the following limitations apply:

Auxiliary Light One & Two Dimming and ON/OFF functions are not available from bikes factory controls (All dimming and light settings need to be configured in the CANsmart Accessory Manager Software)
Day/Night intensity is unavailable
Turn signal circuit function not available.
Cancel auxiliary lights with turn signal feature not available.
Flash auxiliary lights as turn signal feature not available.
Auxiliary brake light activates with front brake lever only

If dimming your auxiliary lighting on-the-fly is important to you we recommend using our DialDim Lighting Controller which enables on-the-fly dimming and control of up to two sets of aux lights. Keep in mind that both products can be installed on your Norden together, so a logical setup would be two sets of aux lights on a DialDim while your horn, brake lights, DRLs, or other accessories can be powered from the CANsmart.
