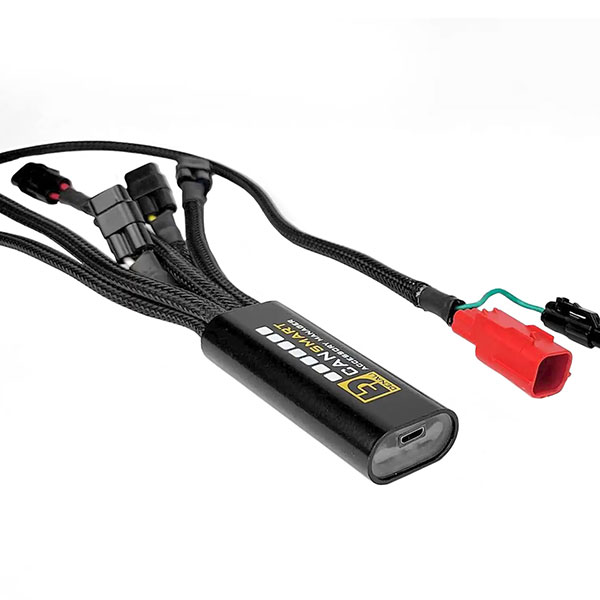

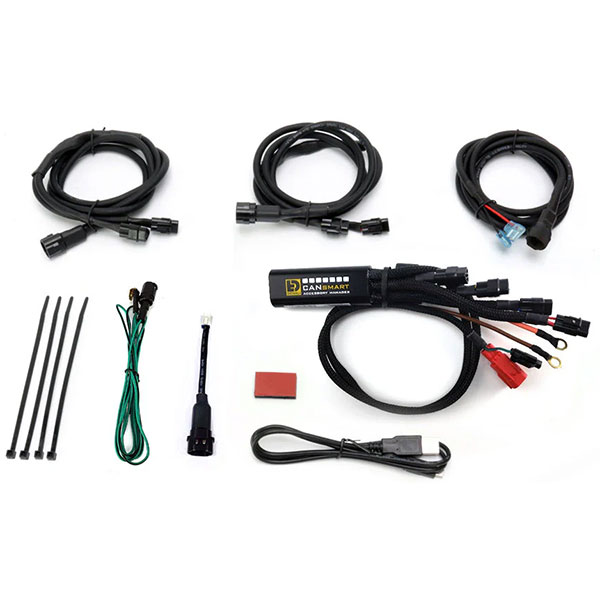

Denali 2.0 Plug-N-Play CANsmart Controller - KTM 890 ' 21- / KTM 1290 '21-

Denali 2.0 Plug-N-Play CANsmart Controller - KTM 890 ' 21- / KTM 1290 '21-

• Fits KTM 890 ' 21- / KTM 1290 '21- (Some limitations apply for the 890 model. See Features tab for more information)
• New firmware allows full dimming control of two-wire circuits, including any brand of driving light

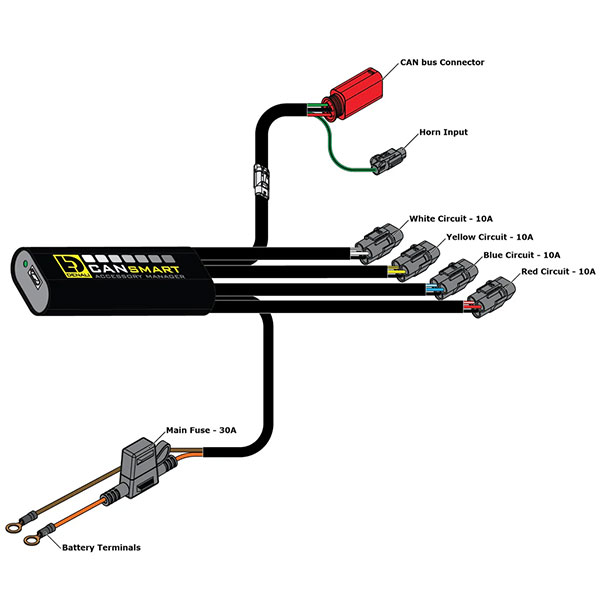

• Four dedicated circuits pre-programmed to control two sets of auxiliary lights, an auxiliary horn, and an auxiliary brake light
• Each circuit is electronically fused and preconfigured to use right out of the box
• Flash to pass and strobe when horn active, can strobe your auxiliary lights when you pulse the high beam or sound your horn
• Compatible with the Denali B6 Auxiliary Brake Light for integrated running light, multiple flash pattern, deceleration and activated braking functionality
• Permits use of auxiliary horn like the Denali SoundBomb without having to add a relay or dedicated horn wiring harness

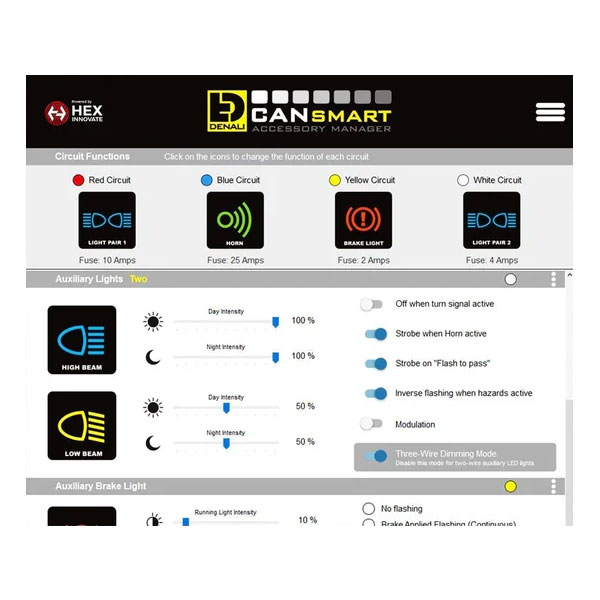

• Dozens of customisable settings that can be controlled by CANSmart accessory manager software

Denali 2.0 Plug-N-Play CANsmart Controller - KTM 890 ' 21- / KTM 1290 '21-

High/Low Sync
Set passing lamps and auxiliary lights to switch between a programmable high/low setting with the factory high beam switch.

ON/OFF and Dim*

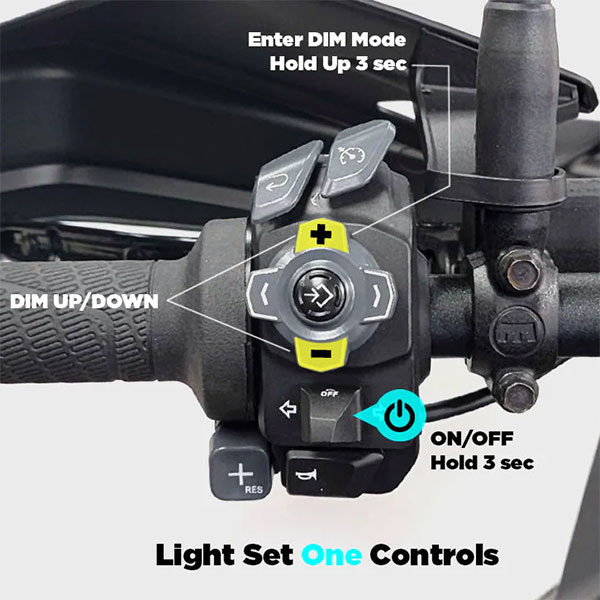

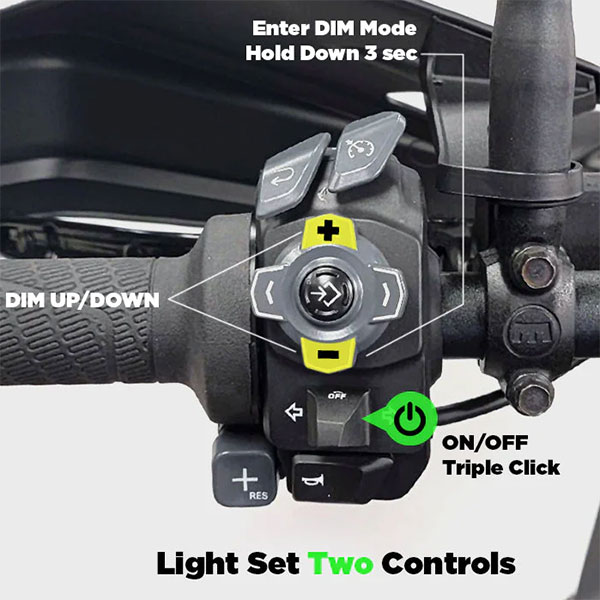

Independently control two sets of lights ON/OFF and change intensity level from your original vehicle switches.

Modulate Lights
Set auxiliary lights to modulate for increased visibility to other motorists.

Flash to Pass
Need to get someone's attention? Pulse your high beam switch three times and your auxiliary lights will strobe three times fast.

Cancel With Indicators*
This feature cancels the corresponding auxiliary light when you turn your indicator on preventing powerful auxiliary lights from overpowering your signal.

Inverse Flashing With Hazards*
This features flashes your auxiliary lights inversely to your hazard lights, increasing visibility during road side emergency's.

Plug & Play Horn Installation
Quickly and easily connect high power aftermarket horns like our SoundBomb™ without having to add an additional harness or relay.

Strobe with Horn
With this feature selected the CANsmart™ software will automatically strobe your passing lamps or auxiliary lights when you sound your horn. This feature works whether you have the factory horn or SoundBomb™ horn installed.

Deceleration Activated "Smart Brake" Technology
The CANsmart™ reads vehicle speed in real time to activate your auxiliary brake light during deceleration before you even touch the brake. You can adjust the sensitivity and minimum speed at which the Smart Brake Feature will activate.

Flash Pattern Braking
The CANsmart™ provides four different flash patterns that make our super bright auxiliary brake lights even noticeable to motorists behind you. You can set auxiliary brake lights to only flash under hard braking, flash continuously as your brake is applied or flash four times rapidly then hold steady (California legal flash rate).

Circuit Function Selector

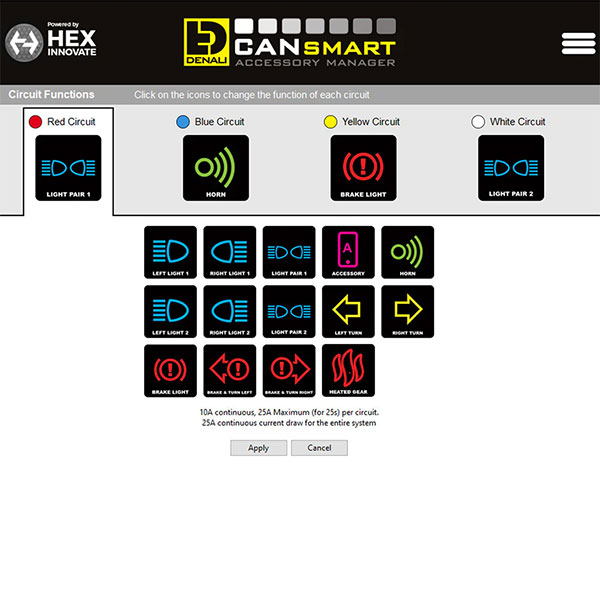

The Circuit Function Selector in the CANsmart software will let you run any accessory of your choice on any of the four circuits. Click on a circuit icon to open the drop down menu and make your selection from the list of available circuit functions.

Switched Power Source
The CANsmart™ provides a universal "accessory" option which simply gives you clean switched 12V power. That means whatever accessory you connect to this circuit will turn on and off with your ignition.

Delay Time Out
You can also set the accessories on this circuit to have a delayed time out. This will keep them powered for up to 30 seconds after your turn off your bike.

On Board Power
The "accessory" circuit option is ideal for powering your GPS, phone, heated gear or any other electronic device.

*KTM 890 Limitations
Due to variances with the KTM 890's factory wiring harness, the following limitations apply:

Auxiliary Light One & Two Dimming and ON/OFF functions are not available from bikes factory controls (All dimming and light settings need to be configured in the CANsmart Accessory Manager Software)
Indicator circuit function not available.
Cancel auxiliary lights with turn signal feature not available.
Flash auxiliary lights as turn signal feature not available.
Auxiliary brake light activates with front brake lever only
KTM Dongle feature not available

If dimming your auxiliary lighting on-the-fly is important to you, it is recommended to use the DialDim Lighting Controler which enables on-the-fly dimming and control of up to two sets of aux lights. Keep in mind that both products can be installed on your 890 together, so a logical setup would be two sets of aux lights on a DialDim while your horn, brake lights, DRLs, or other accessories can be powered from the CANsmart.
