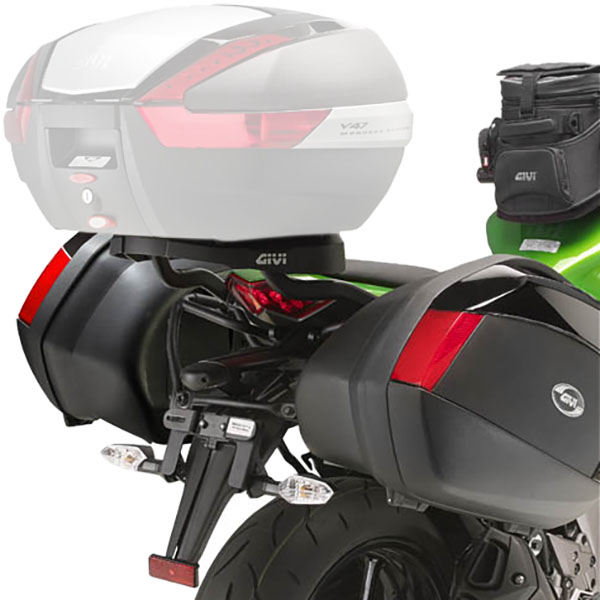

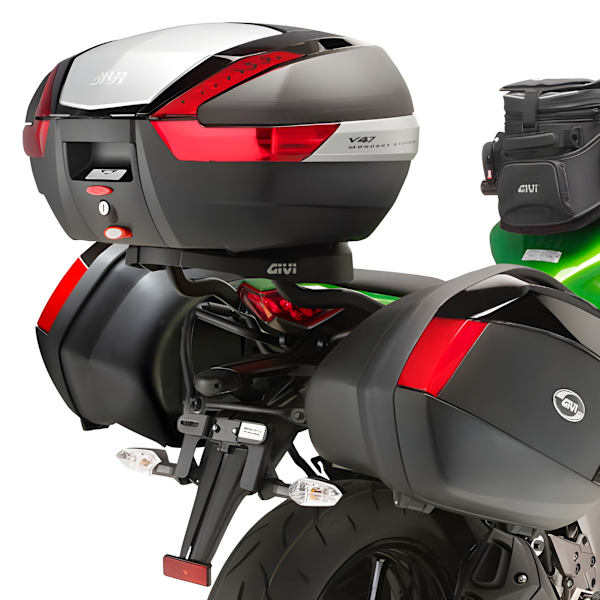

Givi 4100FZ Monorack Arms - Kawasaki Z1000 SX
Motorcycle specific Monorack arms and fitting kit
Details
£114.87
RRP £140.00
Select an option
Online
In-store
Seen it cheaper?
Get a price match
Get a price match
FREE delivery & returns
Quick find: 206710
Verified Customer Reviews for Givi 4100FZ Monorack Arms
Top quality , great price
08 May 2024 by Phil M
A quality product, looks great when fitted. It was a bugger to fit but that's not the product it's just physics.
It was a fair price and delivered quickly.
No complaints
Helpful?
Fingers crossed all ok
11 March 2024 by Anonymous
Quite a lot more work to fitting than the diagram shows but once on seems sturdy so fingers crossed all ok
Helpful?
Check your model
11 September 2019 by Anonymous
Unfortunately these were not the right item for my bike , I was advised on the part number but it was incorrect
Helpful?
Top box arms
20 May 2019 by Paul L
Purpose made arms for a z1000sx to enable you to fit a top plate for a top box. Quality of finish is ok but only time will tell how long they last before they start to look tired. The instructions are the usual pictures only so not great as they fail to mention you will need to disconnect the wiring from the indicators and number plate light to feed it through the bracket. This is fiddly as the wiring is hard to get to between the under tray and rear seat subframe. Apart from that they do what they should.
Helpful?
Solid Product
14 January 2019 by Anonymous
Bought this to replace the side panniers that came with the bike to allow pillion passengers to lean back on. The construction/engineering of the product is well made and relatively easy to put together once the main bracket is fitted. As previous reviews have mentioned, don't be fooled by the simple diagram that comes with this product. In order to get the main bracket on involved removing (and dismantling) the number plate assembly, disconnecting the tail lights/indicators and dismantling parts of the seating area. All to feed everything through the box bracket and screw back together again. Once all the bit and pieces are assembled it does feel a solid bit of kit, but again be aware of the extra work that can be involved to fit it. Apart from that, very happy.
Helpful?
Good product
29 June 2017 by Peter C
A well engineered product and a perfect fit. The exploded fitting diagram is simple but doesn't indicate how to disassemble the rear wheel arch and number plate assembly. To fit box shaped bracket under seat it is necessary to release the wheel arch by undoing an additional security set screw under seat to help access two self tapping screws which hold the number plate assembly then disconnect three wiring connectors near battery. It took about 1 1/2 hrs to fit. The local Kawasaki dealer was helpful in advising me these instructions before I started.
Helpful?
Overall a must
06 April 2017 by Graham H
The instructions were a let down, as did not explain on diagram, that you had to dismantle body parts which was a bit of a let down. Only one person on Youtube showed this, but not the full description. But overall, it is a must as now I know my wife is a lot safer on the back.
Helpful?
Description
Product Fitment
Related Items
Manufacturer
Givi 4100FZ Monorack Arms - Kawasaki Z1000 SX
- Motorcycle specific fitment
- Not supplied with top plate
- Complete with all fittings
- Robust and durable design
- Fitting instruction included
Bike specific Monorack arms designed to take Givi cases which are suitable for motorcycles, scooters and maxi scooters. This same range of cases is the result of more than 20 years experience in the production of motorcycle accessories, and represents the best on the market for design and functionality. Thanks to Givi's attention to detail, these cases are designed to fit the motorcycle properly and are the solution to all needs for all customers. They are a technological point of reference for a complete and satisfying riding experience, made to guarantee ease of use thanks to the fitting system of the plate which uses a single key. Givi has patented the two most famous locking systems in the world; the Monokey and Monolock systems.
The Monokey series is Givi's the top of the range locking system which are typically has a more substantial mount with more features and higher quality construction. Monolock cases are generally lighter cases with a smaller mount; they are of a more lightweight construction, which makes them ideal for scooter and smaller motorcycle applications. Monolock and Monokey cases attach differently to their top plates, Monokey cases are interchangeable and can be used as a top case and/or side cases. Monolock cases are designed to be used as top cases only; they cannot be used as side cases due to their more lightweight construction and mount.
Fitting Instructions
The Monokey series is Givi's the top of the range locking system which are typically has a more substantial mount with more features and higher quality construction. Monolock cases are generally lighter cases with a smaller mount; they are of a more lightweight construction, which makes them ideal for scooter and smaller motorcycle applications. Monolock and Monokey cases attach differently to their top plates, Monokey cases are interchangeable and can be used as a top case and/or side cases. Monolock cases are designed to be used as top cases only; they cannot be used as side cases due to their more lightweight construction and mount.
Fitting Instructions
Questions and Answers
Will the arms sit above the grab handles. So they can be used instead of the grab handles.
June 7, 2018The Givi Monorack Arms are secured in the same location as the motorcycle's OEM grab rails, but the arms are positioned slightly lower than the grab rails. Please judge using the arms as grab rails at your own discretion.
Does this fit the new 2017 model Z1000SX WHF
March 20, 2017Yes, this will fit the 2017 model.
will this rack fit as i have kawasaki panniers on the bike . thanks
March 14, 2017This is not compatible with the original sidecase holders.
